Custom Wavelength Lasers
Specialty Diode Laser

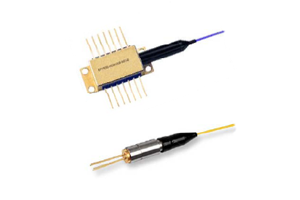

Leveraging Discrete Mode (DM) and other proprietary technologies, Eblana has developed a range of highly specialized diode lasers for sensing, medical, energy, defense an aerospace industries. Eblana is capable of producing single mode lasers over wide wavelength ranges with narrow spectral linewidth, high power or customized spectrum shape. The lasers are packaged in either fully temperature controlled industry standard 14-pin butterfly packages or economic and compact coax packages.

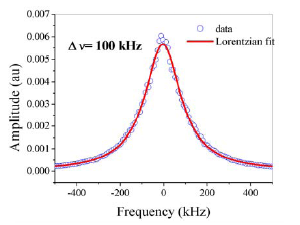

Narrow Linewidth Laser
- Linewidth as narrow as 100kHz.
- Stable single cavity without external cavity or feedback.
- Tuneable by either temperature or current
- Very low mode partition noise
- Low RIN -160dB/Hz
- Low sensitivity to environment and mechanical vibration

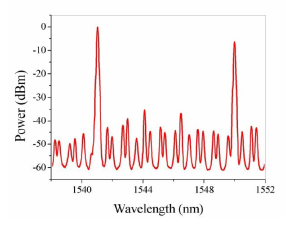

Dual Mode Laser
- Simultaneous emission at 2 different wavelengths. Fixed or tunable spacing.
- Each peak tuned individually, up to THz optical frequency difference between peaks.
- Ideal source for dual wavelength measurement system or high frequency signal generation
- Compact and reliable single chip design

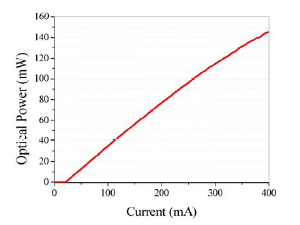

High Power Single Transverse Mode Laser
- Low loss resonator design
- Output optical power up to 100mW
- Single transverse mode
- Near diffraction limited output
- Efficient coupling to single mode fiber
